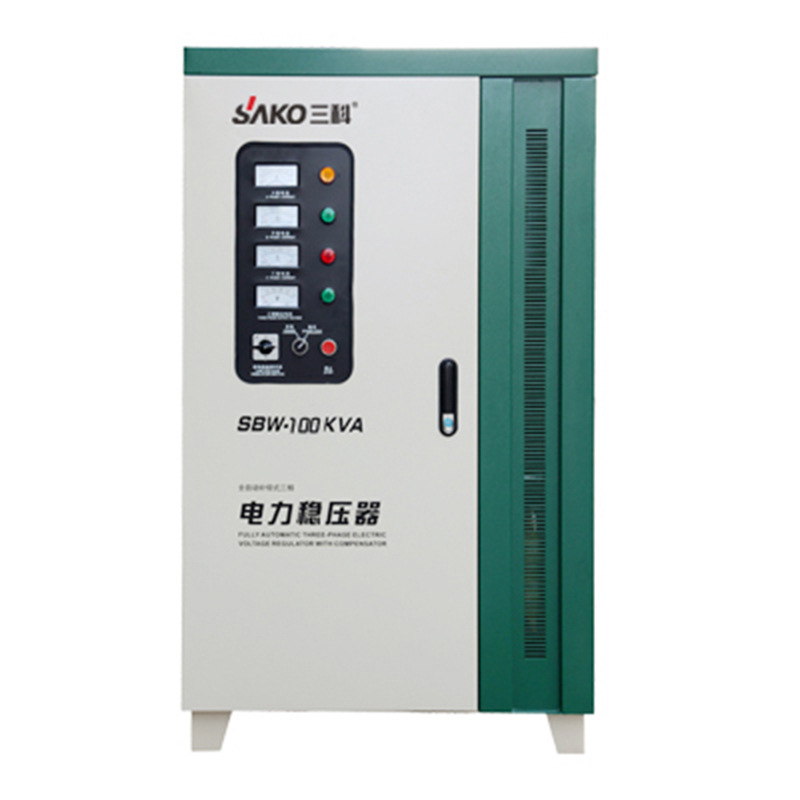

Product name: SBW high power compensation type power regulator Model: SBW-20KVA-2000KVA Input voltage: phase voltage 176V-264V Line voltage 304V-456V Input frequency: 50Hz /60Hz Input phase number: three-phase four-wire +PE Output voltage: Phase voltage 220V±4% Line voltage 380V±4% Overvoltage protection value: output line voltage 426V±7% |
| Model number |
Rated capacity |
Product dimensions |
Input voltage |
Output voltage |
Output current |
Frequency (Hz) |
| SBW-20KVA |
20 |
76 x53. 5 x128 |
304 ~ 456 |
380 |
30 |
50/60 |
| SBW-30KVA |
30 |
76 x53. 5 x128 |
304 ~ 456 |
380 |
46 |
50/60 |
| SBW-50KVA |
50 |
76 x53. 5 x128 |
304 ~ 456 |
380 |
76 |
50/60 |
| SBW-100KVA |
100 |
84.5 x64.5 x143 |
304 ~ 456 |
380 |
152 |
50/60 |
| SBW-150KVA |
150 |
99.5 x74.5 x175 |
304 ~ 456 |
380 |
228 |
50/60 |
| SBW-180KVA |
180 |
99.5 x74.5 x175 |
304 ~ 456 |
380 |
273 |
50/60 |
| SBW-200KVA |
200 |
104 x79. 5 x175 |
304 ~ 456 |
380 |
304 |
50/60 |
| SBW-225KVA |
225 |
104 x79. 5 x175 |
304 ~ 456 |
380 |
342 |
50/60 |
| SBW-250KVA |
250 |
104 x79. 5 x175 |
304 ~ 456 |
380 |
380 |
50/60 |
| SBW-300KVA |
300 |
120x90x200 |
304 ~ 456 |
380 |
456 |
50/60 |
| SBW-320KVA |
320 |
120x90x200 |
304 ~ 456 |
380 |
486 |
50/60 |
| SBW-350KVA |
350 |
120x90x200 |
304 ~ 456 |
380 |
532 |
50/60 |
| SBW-400KVA |
400 |
120x90x200 |
304 ~ 456 |
380 |
608 |
50/60 |
| SBW-450KVA |
450 |
120x90x200 |
304 ~ 456 |
380 |
684 |
50/60 |
| SBW-500KVA |
500 |
130x105x215 |
304 ~ 456 |
380 |
760 |
50/60 |
| SBW-600KVA |
600 |
130x105x215 |
304 ~ 456 |
380 |
912 |
50/60 |
| SBW-800KVA |
800 |
(130x100x200)x2 |
304 ~ 456 |
380 |
1216 |
50/60 |
SBW-1000KVA
|
1000 |
(130x100x200)x2 |
304 ~ 456 |
380 |
1520 |
50/60 |
| SBW-2000KVA |
2000 |
(130x100x200)x2 |
304 ~ 456 |
380 |
3040 |
50/60 |
| DBW-20KVA |
20 |
76 x53. 5 x128 |
176 ~ 264 |
220 |
90 |
50/60 |
| DBW-30KVA |
30 |
76 x53. 5 x128 |
176 ~ 264 |
220 |
136 |
50/60 |
| DBW-50KVA |
50 |
76 x53. 5 x128 |
176 ~ 264 |
220 |
227 |
50/60 |
| DBW-60KVA |
60 |
76 x53. 5 x128 |
176 ~ 264 |
220 |
272 |
50/60 |
Sanke is a modern professional power supply manufacturer with four manufacturing bases in Shenzhen, Dongguan, Hangzhou and Wenzhou. Professional R & D, manufacturing, sales, service regulated power supply, inverter, UPS power supply, EPS power supply, solar inverter power supply, solar charging controller, solar household power system, RV special power supply, battery, inverter power supply, DC power supply, switching power supply and other series of power products. The sales network covers more than 100 cities across the country, and the products are exported to more than 30 countries and regions around the world. The users mainly include: education system, telecommunications, electric power system, highway, postal system, banking and securities, transportation and road administration, government agencies, scientific research institutions and large factories and mining enterprises.
The company has passed ISO9001 quality management system, ISO14001 environmental management system, OHSMS28001 occupational health and safety management system and other international standard management system certification, the main products have obtained 3C product certification, CE certification, the State Administration of Radio, Film and Television shortlisted certification, etc. The company has always adhered to the road of independent research and development innovation. At present, it has won more than 10 national patents. We adhere to the business philosophy of "respecting heaven and loving people, practical work, moral commitment and common growth". With the business strategy of "integrity-based, innovation as the soul", we closely focus on the quality policy of "long wind and waves, quality and efficiency Xing Hongye", adhere to the "professional marketing, professional research and development, professional manufacturing," towards the grand goal of building a "global well-known power brand".
